CO2/N2O Analyser / GHG Analyser

(Ultimate Precision for GHGs measurements)

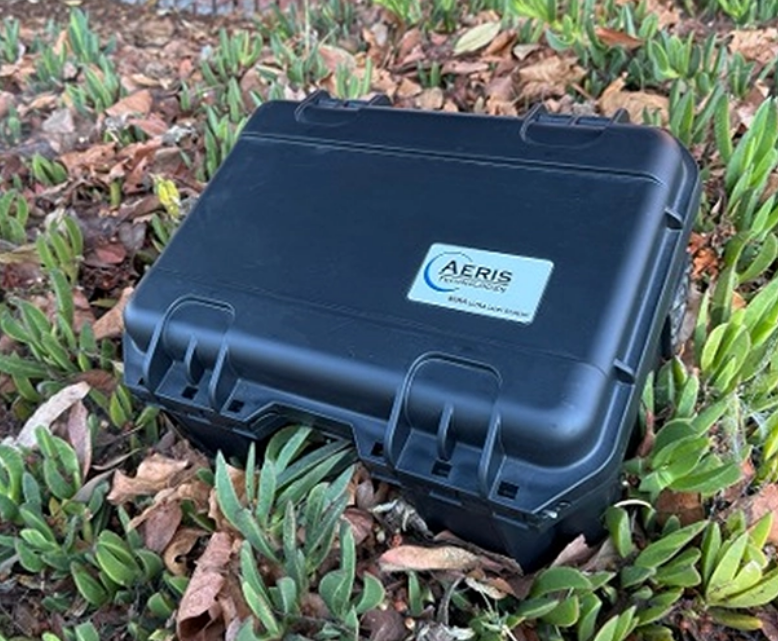

Introducing the new MIRA CO2/N2O portable analyzer from Aeris Technologies, Inc. The MIRA CO2/N2O analyzer is a massive leap forward to monitor two of the most important greenhouse gases on Earth. Its 1σ-precision specifications are the following for 1 second and 5 minutes of integration periods:

• CO2 = 200 and 20 ppb,
• N2O = 200 and 20 ppt.

The MIRA analyzer provides a real-time and autonomous operation, extreme linearity over multiple decades of concentration, is portable, battery-powered, and at a fraction of the cost of analytical solutions displaying comparable performance.

Key Features

• High precision measurement of water vapor, reporting of CO2 and N2O in dry mole fraction without the need for drying or data corrections
• Ultra-portable
• Ready to measure one minute after pressing the start button
• Full absorption spectrum always visible
• Ultra small 60 cc cell volume for instantaneous response and sharp signals when measuring transients
• Autonomous and continuous operation
• 1 Hz default reporting and data logging
• 15 W power consumption (standard conditions)
• On-board Li-ion batteries provide 6 hours of continuous use (standard conditions) in the Pico embodiment
• Linear response over a wide concentration range spanning multiple orders of magnitude (typically ppb to thousands of ppm)
• On-board data storage allowing for years of operation before removing oldest data
• User interface accessible from any WiFi-enabled device
• Data logged in spreadsheet format accessible over WiFi network or USB drive
• Data stream from analyzer via serial RS-232 cable or wireless UDP communication
• Cellular modem for remote access where cell phone coverage is available

Product Details : Click Here
